Highlights

Description

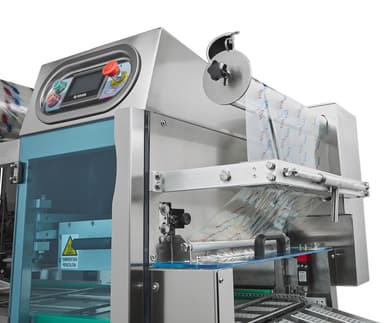

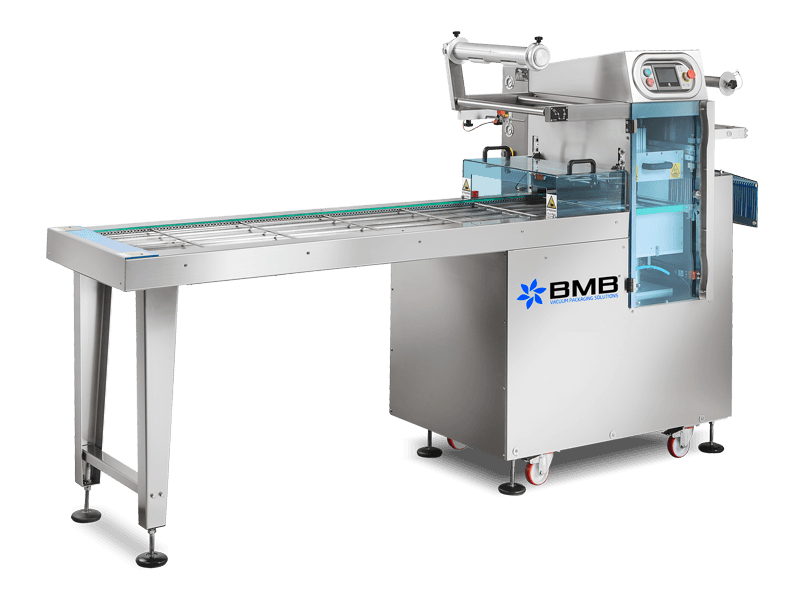

The high-speed horizontal shrinkwrapper mod. AFB 4 allows producing double-shrinkwrapped bundles with stratified layers of packages. The bundle is double-shrinkwrapped in order to safeguard the product as well as possible during the shrinking phase and to make the bundle more stable. The wrapping material comes from four film rolls of shrink-wrap low-density polyethylene film (LDPE). Designed to satisfy the client’s requirements with high speeds and absolute reliability, the shrinkwrapper can be combined with many different packaging machines and is provided with a fast sealing cooling system and a metal-mesh shrink-wrap tunnel of variable speed. Weight: 1700 kg approx Power: 20,7 KVA Pneumatic requirements: 70 nl/bundle at 6 bar Film dimensions: external: 320 mm max Internal: 70/76 mm max Film width: 1000 mm Material film: thermoseable film Protection: IP55 European Safety Standard

Certifications
