Description

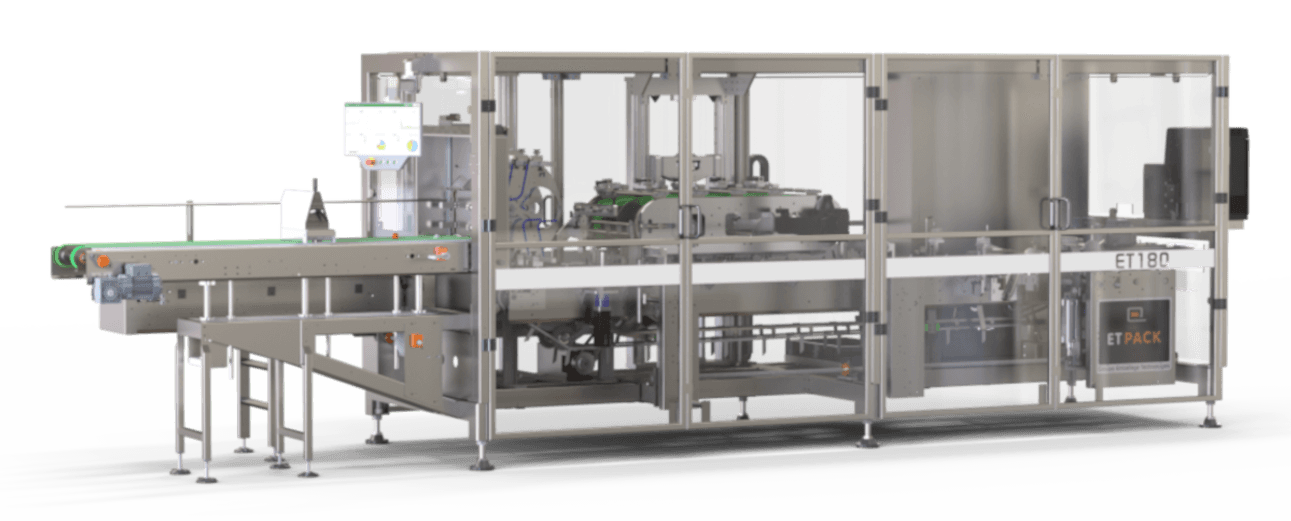

• Multiformat automatic endload cartoner for box forming, loading and closing • Continuous motion • Applications: boxes with or without window • Dealing with cardboard as well as microfluted board • Gluing by hot-melt glue melter • A wide range of automatic infeeds: Unitary products, batching, stacking … • Options: in-going buckets conveyor, automatic settings, inkjet marker integration, label application, barcode control, control and rejection of not glued boxes … MAIN FEATURES • High capacity easy loading blanks magazine • 4-arm rotary feeder • Boxes pre-opening vacuum cups • Push input 12 stations • HMI up to 15,6” • Servodriven motors • Multi-brand Ethercat communication • Stainless steel frame • Dimensions: 6800 x 1550 x 2050 mm 267,72’’ x 61,02’’ x 81,71’’ • Classification: IP54 • Power supply: 18 kW • Pneumatic supply: 6 bars • Mini/maxi boxes dimensions: Length : 120 – 320 mm / 4,72” – 12,6” Width : 40 – 180 mm / 1,57” – 7,09” Height : 25 – 110 mm / 0,98” x 4,33” MACHINE RATE Up to 200 ppm FINAL PACKAGING Boxes YOUR PRODUCT Biscuits, Chocolate factory, Confectionery, Convenience food, Cosmetics and pharma, Frozen products, Sea products
