Description

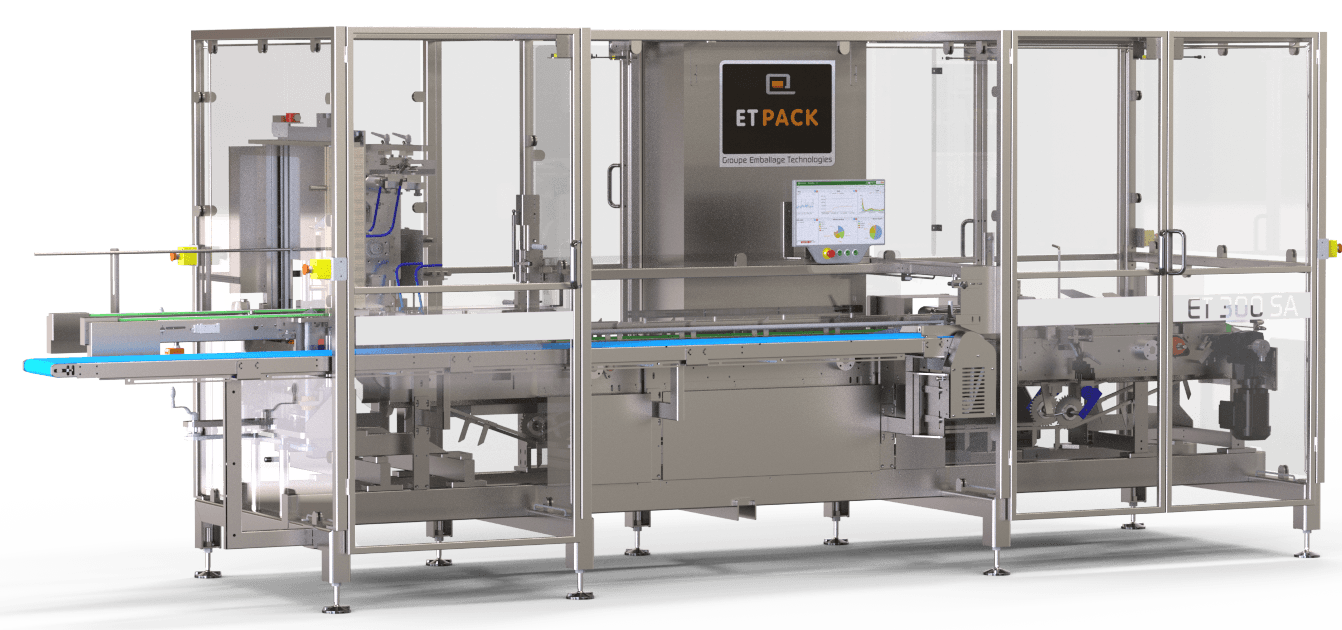

• Semi-automatic horizontal cartoner for filling and closing cases • Applications: cases with or without windows • Continuous operation • Hot-melt bonding version • Compact and micro-corrugated cardboard • Manual entry by operators • Product feeding by conveyor • Options: inkjet marker integration, label application, control and ejection of empty or unglued cases, etc. TECHNICAL FEATURES • Ergonomic and motorized horizontal magazine • 2-arm rotary unstacker • Positive counter-openings when volume is added • By-pass mode integrated into the machine • HMI up to 15.6” • Brushless axis and motor controller • Multi-brand Ethercat communication • Stainless chassis • Dimensions: 5705 x 1420 x 2050 mm • Classification: IP54 • Power supply: 10 kW • Pneumatic supply: 6 bars • Standard mini/maxi formats: Length: 120 – 360 mm Width: 40 – 260 mm Height: 25 – 110 mm MACHINE CADENCE 10 to 60 cps/min FINAL PACKAGING Cases YOUR PRODUCT Biscuits , Chocolate , Confectionery , Cosmetics and pharmaceuticals , Seafood , Frozen products , Catering products , Meat and poultry
